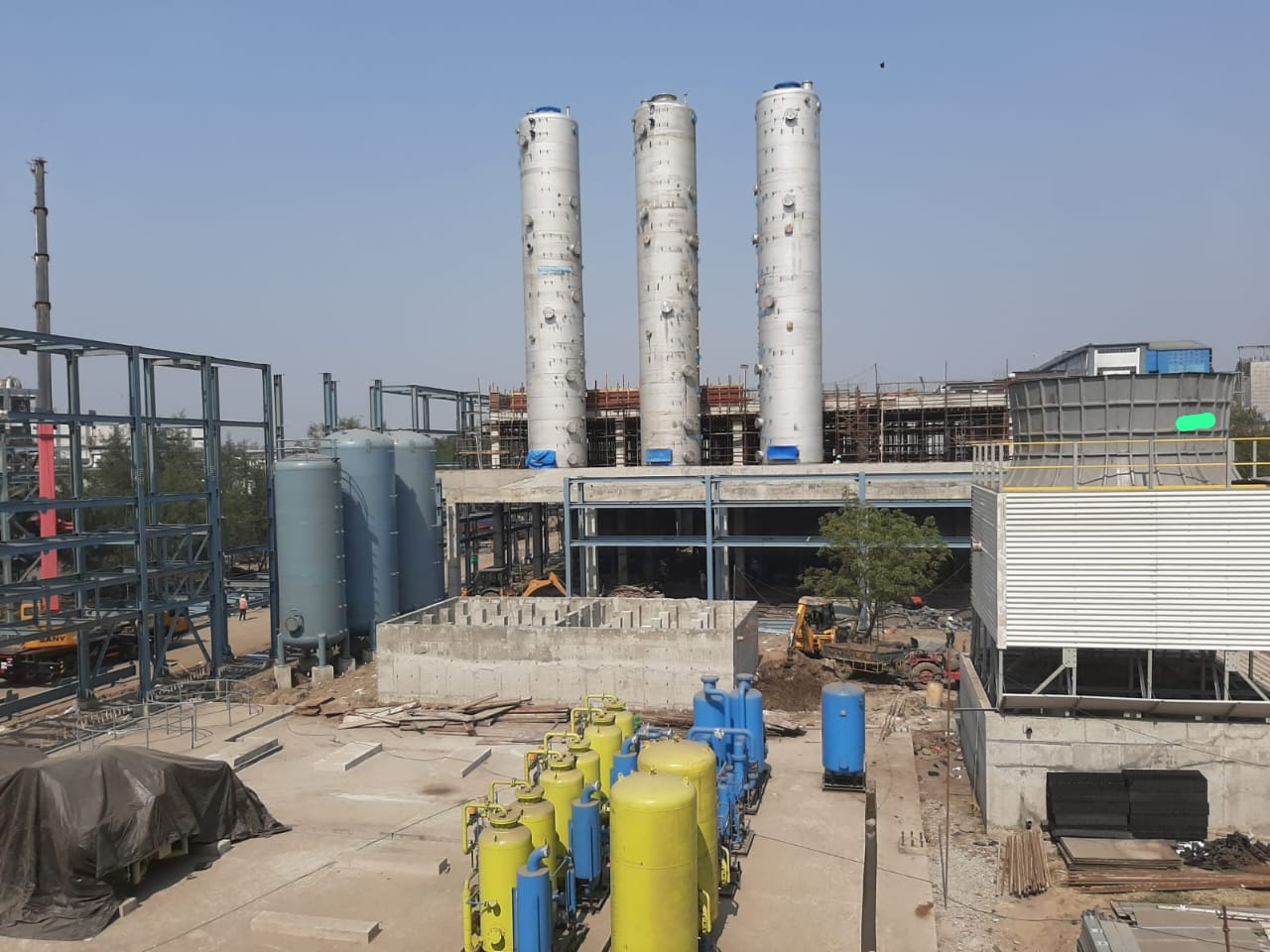

The image showcases an industrial facility where the C-Blower Room forms a crucial part of the plant’s air handling and utility infrastructure. Designed by Engineers at Purna, this structure reflects a strong integration of civil fundamentals, structural engineering accuracy and process driven layout planning.
Purna Engineers successfully delivered the complete Civil and Structural Engineering for this facility. Followed by submission of all required construction ready drawings, enabling seamless site execution.
Role of the C-Blower Room in the Plant
The C-Blower Room houses critical equipment used for:
- Forced draft or induced draft air supply
- Process air distribution
- Cooling, conveying and combustion support systems
- Utility air balancing across the plant
Its structural configuration must therefore support heavy static loads, dynamic vibrations and equipment access requirements.
Precision Engineering in Action
From the alignment of steel arches to the framing of the curved roof geometry, the construction process demands a high level of detailing and execution. The even spacing of trusses, the consistent curvature and the intricate connection points highlight:
Civil Engineering Scope Delivered by Purna
1. Foundation System Design
- Analysis of soil data and selection of isolated or combined foundations
- Design for high equipment loads and vibration control
- Provision for anchor bolts, pedestal elevations and grout pockets
- Strict adherence to safety and quality standards
2. RCC Superstructure Elements
- Slabs, beams and columns designed as per IS 456
- Openings and embedment’s coordinated with mechanical layouts
- Durable concrete grades and reinforcement detailing
3. Drainage, Floor Levels & Access Planning
- Clear floor levels for equipment movement
- Proper drainage slopes and sump provisions
- Cable routing and piping trench interfaces
Structural Engineering Scope Delivered by Purna
1. Steel Framing System
- Structural beams and columns modelled for loads from blowers, ducts, access platforms and piping
- Consideration of horizontal forces from equipment vibrations
- Design complying with IS 800 and IS 875
2. Load Analysis for All Operating Conditions
- Dead and live loads
- Equipment loads
- Wind and seismic forces
- Dynamic load factors
3. Integration With Adjacent Structures
- Pipe racks, process buildings and vertical equipment
- Duct routing clearance and maintenance accessibility
- Crane and lifting access considered in the planning
Deliverables Submitted by Purna
Purna submitted a complete set of detailed engineering documents, including:
- General arrangement drawings
- RCC foundation and superstructure drawings
- Structural steel framing drawings
- Reinforcement detailing
- Sectional views and construction notes
These drawings enabled the client to proceed with smooth execution, ensuring accuracy and eliminating rework during construction.
A Reliable Engineering Partner
Purna’s detailed design engineering ensures that the C-Blower Room is:
- Structurally safe
- Durable under dynamic operation
- Easy to maintain
- Fully compliant with industry standards
This project stands as another example of Purna Engineers’ capability to deliver robust, high quality civil and structural engineering solutions for complex industrial facilities.
